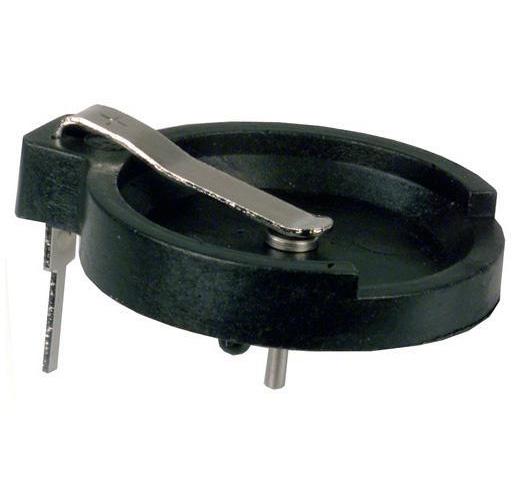

12-30mm Button Cell Battery Holder, Horizontal PCB Mount - 1025-7
12-30mm Button Cell Battery Holder, Horizontal PCB Mount - 1025-7
Regular price
£4.59 GBP
Regular price
Sale price
£4.59 GBP
Unit price
/
per
The 1025-7 is a 1-cell 3V printed circuit Battery Holder for lithium coin cells. Unique notched slots assure quick and easy battery insertion and replacement. Will accommodate diameters from 12 to 30mm and heights from 1.6 to 7.7mm. Nickel-over-copper plated spring steel contacts feature clearly marked polarities to help guard against improper insertion. Base material rated UL94V-0. Impervious to most industrial solvents.
Features
- Low profile for high density packaging
- Reliable spring tension assures low contact resistance
- Retains battery securely to withstand shock and vibration
- Advanced air-flow design pattern enhances air circulation around battery
Specifications | |
---|---|
Battery Sizes Accepted | Coin Cell - 24mm |
No. of Batteries | 1 |
Battery Holder Mount | Through Hole |
Country of Origin: | United States |
