10 Position Rotary Coded Switch, BCD, 24V DC, 25mA, 3x2 - MCRH2MAF-10R-V-B
10 Position Rotary Coded Switch, BCD, 24V DC, 25mA, 3x2 - MCRH2MAF-10R-V-B
Regular price
£4.09 GBP
Regular price
Sale price
£4.09 GBP
Unit price
/
per

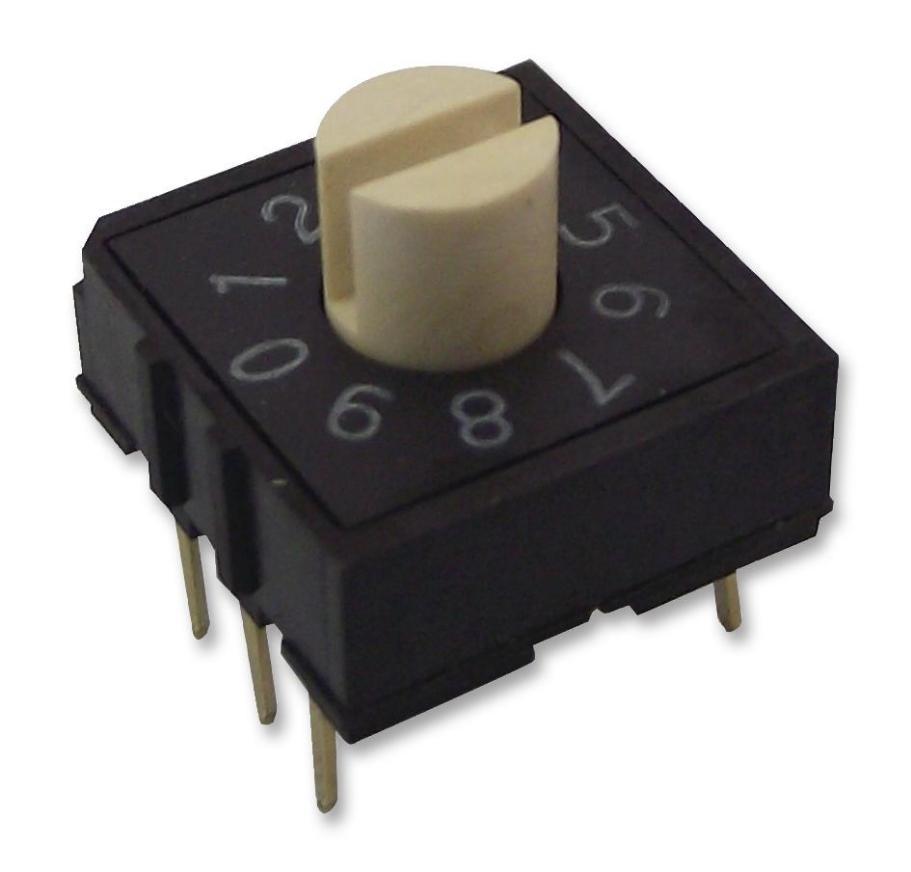

The MCRH2MAF-10R-V-B is a 10-position through-hole Rotary Coded Switch with high-temperature thermoplastic raised actuator. It has copper alloy with gold-plated over nickel contact, gold-plated brass terminal, black high-temperature thermoplastic base and cover.
Features
- UL94V-0 Flammability rating
- 20000-step Electrical life at 200mΩ maximum
- 20000-step Mechanical life at 200mΩ maximum
- 25mA at 24VDC Switching rating
- 100mA at 50VDC Non-switching rating
- -25 to 80°C Operation temperature range
- Multicomp Pro products are rated 4.6 out of 5 stars
- 12 month limited warranty *view Terms & Conditions for details
- 96% of customers would recommend to a friend
Specifications | |
---|---|
Important Product Warning: | Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts. |
