Emergency Stop Push Button Switch, DPST, 1NC, 3A, 250V AC - 84-5040.0040
Emergency Stop Push Button Switch, DPST, 1NC, 3A, 250V AC - 84-5040.0040
Regular price
£44.19 GBP
Regular price
Sale price
£44.19 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

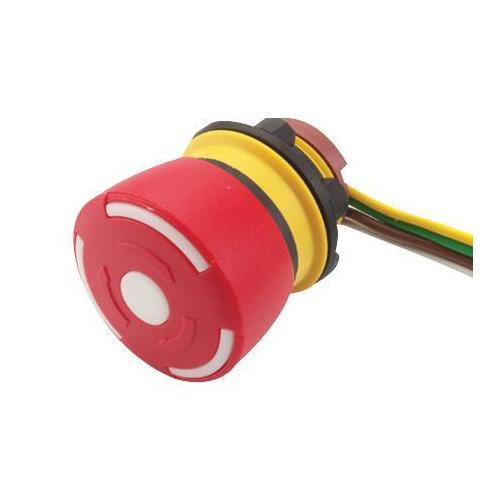

The 84-5040.0040 is a double-pole single-throw (DPST) Emergency-stop Pushbutton with a plastic red polyamide actuator and position indication black ring. The 84 series switch has maintained function and 2NC contacts. It has gold-plated silver alloy contacts. The E-stop pushbutton can be mounted in front panels with a thickness between 1 to 4mm.
Features
- Single-piece monoblock design
- Devices raised mounting
- 300mm Flat ribbon cable terminals
| Specifications | |
|---|---|
| Contact Configuration | DPST-NC |
| Switch Operation | Turn to Release |
| Switch Terminals | Cable |
| Contact Current Max | 3A |
| Contact Voltage AC Nom | 240V |
| Contact Voltage DC Nom | 250V |
| Pushbutton Actuator Style | Mushroom |
| IP Rating | IP65 |
| Product Range | Series 84-50x0.0040 Series |
| Country of Origin: | Switzerland |
