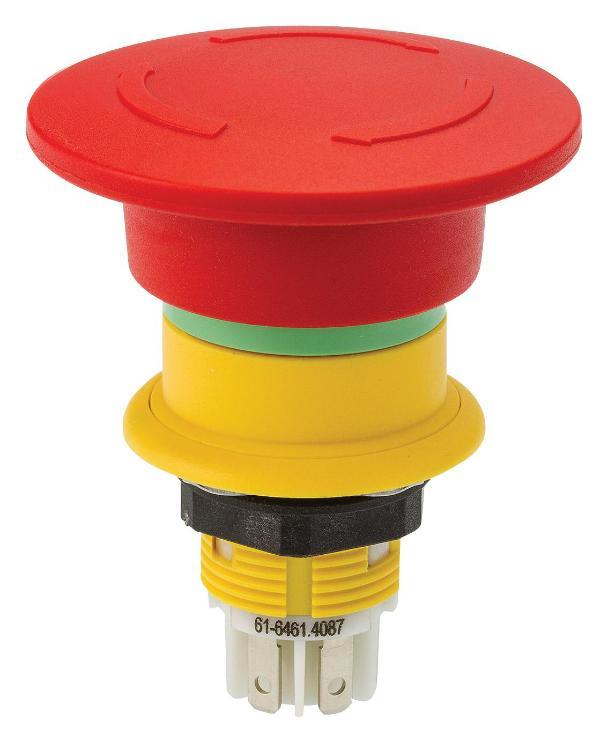

Emergency Stop Mushroom Button Switch, SPST 1NC, 50V, 200mA - 61-6461.4047
Emergency Stop Mushroom Button Switch, SPST 1NC, 50V, 200mA - 61-6461.4047
Regular price
£34.29 GBP
Regular price
Sale price
£34.29 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The 61-6461.4047 from EAO is an emergency-stop switch compact with foolproof EN IEC 60947-5-5 and Ø 40mm front dimension. The 61 series E-Stop compact switch is a robust, reliable, low back panel depth switch ideal for use in space critical applications. The robust mono-block design has a fool proof, trigger action mechanism to break the electrical contacts and a green indication ring to show whether the switch is actuated. The Series 61 E-Stop compact satisfies the needs of use, through rigorous material selection and a robust build quality that meets IP69K, the highest degree of protection against dirt and dust ingress.
Features
- 1 NC contact
- Maintained switch action
- 2.8mm x 0.5mm solder terminal, Ø16.2mm mounting cut-out
- Twist to unlock clockwise, position indication ring green, rated impulse withstand voltage is 0.5KV
- Rated operating voltage is 50VAC/VDC, rated insulation voltage is 250V
- Insulation resistance is 2Mohm between the open contacts, 7Mohm towards panel (DIN IEC 60512-3-1)
- Electrical life time is >= 20000 switching cycles, overvoltage category II (EN IEC 60947-1)
- IP67 and IP69K front protection
- Plastic mushroom head lens and actuator housing material, metal (silver palladium) contact material
- Operating temperature range from -25°C to + 55°C
| Specifications | |
|---|---|
| Contact Configuration | SPST-NC |
| Switch Operation | Turn to Release |
| Switch Terminals | Quick Connect, Solder |
| Contact Current Max | 200mA |
| Contact Voltage AC Nom | 50V |
| Pushbutton Actuator Style | Mushroom |
| IP Rating | IP67, IP69K |
| Product Range | 61 |
| Country of Origin: | Switzerland |
