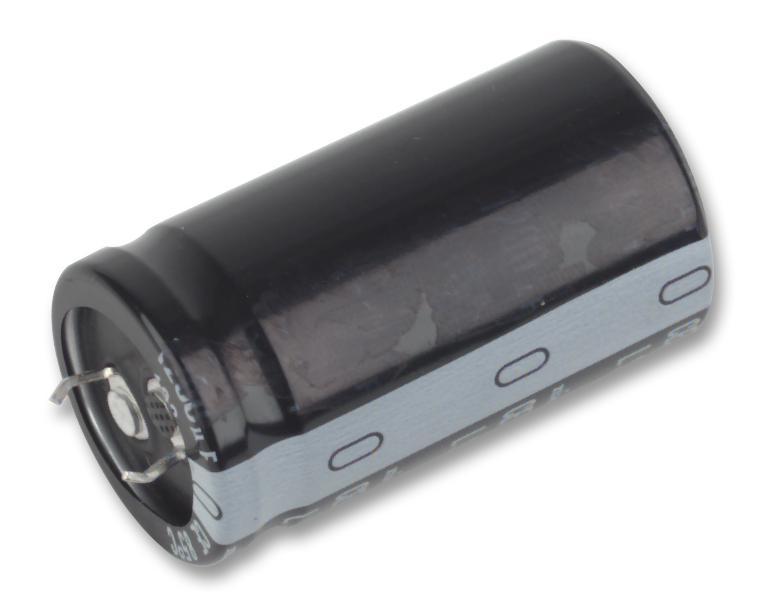

Electrolytic Capacitor, Snap-in, 560 µF, 400 V, LPR Series, ± 20%, Quick Connect, Snap-In - MCLPR400V567M35X52
Electrolytic Capacitor, Snap-in, 560 µF, 400 V, LPR Series, ± 20%, Quick Connect, Snap-In - MCLPR400V567M35X52
Regular price
£9.79 GBP
Regular price
Sale price
£9.79 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The Multicomp Pro MCLPR series capacitors are snap in polarized aluminium electrolytic capacitors. These capacitors are large size capacitors with specially designed self standing terminals and can be directly soldered to printed circuit boards without holders. MCLPR capacitors can easily fix to printed circuit boards due to specially designed terminals.
Features
- Capacitance value ranges from 470?F to 68000?F for 10VDC to 100VDC
- Capacitance value ranges from 47?F to 2700?F for 160VDC to 450VDC
- Tolerance of ±20%
- Available in -40°C to 85°C and -25°C to 85°C temperature ranges based on rated voltage
- Multicomp Pro products are rated 4.6 out of 5 stars
- 12 month limited warranty *view Terms & Conditions for details
- 96% of customers would recommend to a friend
| Specifications | |
|---|---|
| Capacitance | 560μF |
| Voltage Rating | 400V |
| Product Range | LPR Series |
| Capacitance Tolerance | ± 20% |
| Capacitor Terminals | Quick Connect, Snap-In |
| Lifetime at Temperature | 2000 hours at 85°C |
| Polarity | Polar |
| Diameter | 35mm |
| Lead Spacing | 10mm |
| Operating Temperature Min | -25°C |
| Operating Temperature Max | 85°C |
| Height | 52mm |
| Country of Origin: | Taiwan |
