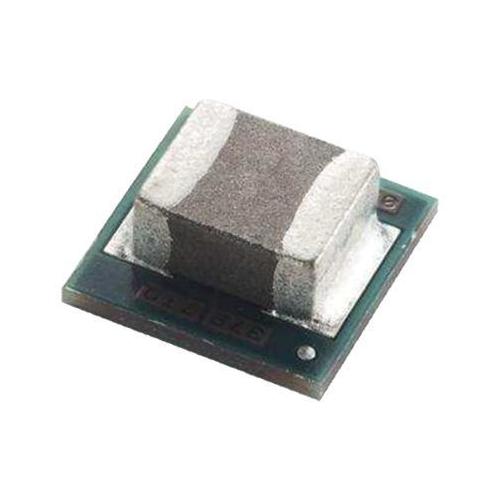

DC / DC POL Converter, Adjustable, Synchronous Buck, 2.5MHz, 0.9 - 6V out, 650mA, µSIP-8 - LMZ21700SILT
DC / DC POL Converter, Adjustable, Synchronous Buck, 2.5MHz, 0.9 - 6V out, 650mA, µSIP-8 - LMZ21700SILT
Regular price
£6.39 GBP
Regular price
Sale price
£6.39 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The LMZ21700SILT is a SIMPLE SWITCHER nano module with integrated inductor in 8 pin μSIP package. This nano module is an easy to use step down DC to DC solution capable of driving up to 650mA load in space constrained applications. Only an input capacitor, output capacitor, softstart capacitor and two resistors are required for basic operation.
Features
- Miniature 3.5mm x 3.5mm x 1.75mm package
- Output current up to 650mA
- Output voltage range from 0.9V to 6V
- Input voltage range from 3V to 17V
- Efficiency up to 95%
- Switching frequency range from 1.25MHz to 2.5MHz
- 1.5μA shutdown current and 17μA quiescent current
- Seamless transition to power save mode
- Junction temperature range from -40°C to 125°C
- Adjustable soft start function, power good and enable pins
| Specifications | |
|---|---|
| DC / DC Converter Type | Module |
| Input Voltage Min | 3V |
| Input Voltage Max | 17V |
| No. of Outputs | 1 Output |
| DC / DC Converter IC Case | μSIP |
| No. of Pins | 8Pins |
| Output Current | 650mA |
| Output Voltage Min | 900mV |
| Output Voltage Max | 6V |
| Switching Frequency | 2.5MHz |
| Topology | Synchronous Buck (Step Down) |
| Operating Temperature Max | 125°C |
| Country of Origin: | Philippines |
