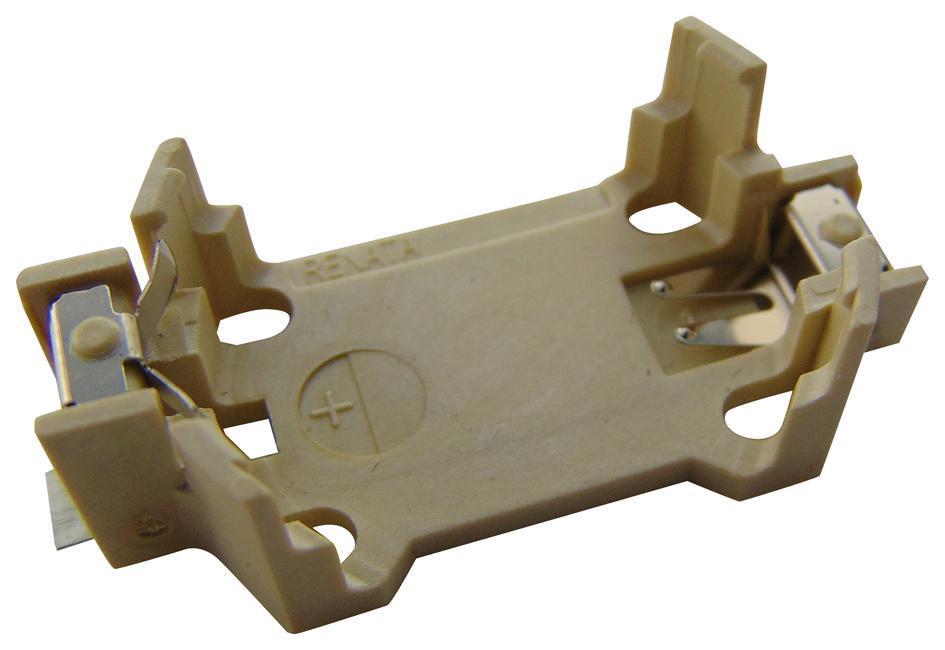

CR2477 SMD Battery Holder - SMTU 2477N-1-LF
CR2477 SMD Battery Holder - SMTU 2477N-1-LF
Regular price
£4.29 GBP
Regular price
Sale price
£4.29 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The SMTU 2477N-1-LF is a Battery Holder for lithium coin cells are available as horizontal or vertical versions with SMT-design. Heat-resistant, glass fibre filled LCP holder with UL94V-0 flammability rating. Stainless steel AISI 301 spring construction with nickel-plated throughout. Tin-plated solder area throughout, 5μm minimum thickness. Contact resistance between contacts and the cell is less than 100mR (1kHz measured through AC, depending on the case material of the cell).
Features
- Easy and fast replacement of battery
- Designed for automatic pick and place mounting
- Safe retention of coin cell
- Automated battery mounting possible
- Clear separation of connections
- Protection against short circuits
- Protection against inverse polarity (polarized)
- Protection against leak currents
- Robust design
- Suitable for reflow soldering
- Gold-plated contacts for increased conductivity
| Specifications | |
|---|---|
| Battery Sizes Accepted | 2477 |
| No. of Batteries | 1 |
| Battery Holder Mount | SMD |
| Country of Origin: | China |
