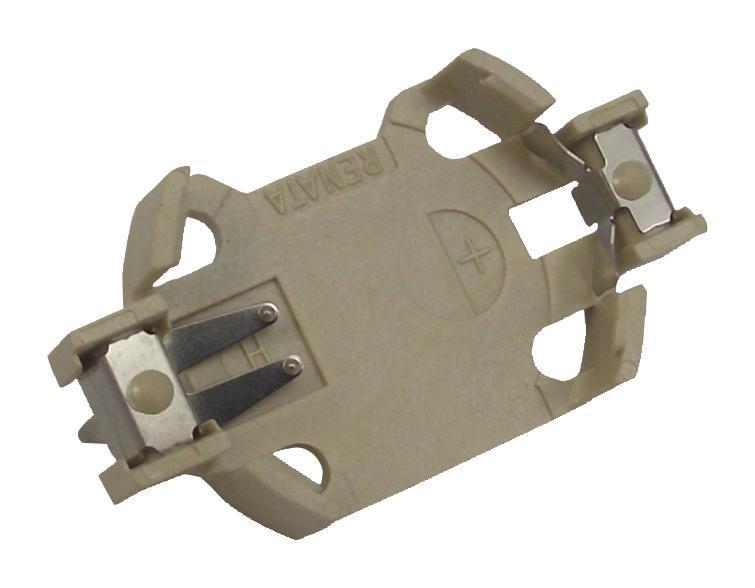

CR2032 SMD Battery Holder - HU2032-LF
CR2032 SMD Battery Holder - HU2032-LF
Regular price
£3.09 GBP
Regular price
Sale price
£3.09 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The HU2032-LF from Renata is a battery holder for lithium CR2032 coin cells, holders are available in horizontal versions with through hole mounting. Material used for holder is heat resistant, glass fiber filled LCP. Contact resistance between contacts to the cell is less than 100mR (measured through AC 1kHz depending on the case material of the cell). This holder features safe retention of coin cell and safety against short circuits.
Features
- UL E218732 recognized
- Flammability rating UL 94 V-0
- Spring stainless steel AISI 301 nickel plated battery contact
- Easy and fast replacement of battery
- Designed for automatic "pick and place" mounting
- Safety against inverse polarity (polarized)
- Protection against leak currents
- Robust design
- Suitable for wave soldering
| Specifications | |
|---|---|
| Battery Sizes Accepted | 2032 |
| No. of Batteries | 1 |
| Battery Holder Mount | Through Hole |
| Country of Origin: | China |
