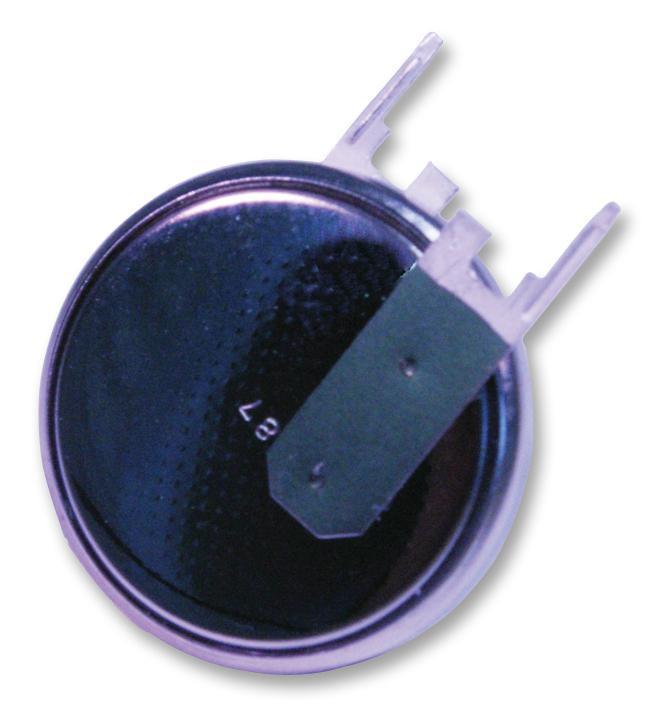

CR2032 3V Lithium Button Cell Battery, 2-Pin Vertical PCB Mount - CR 2032 MFR FV
CR2032 3V Lithium Button Cell Battery, 2-Pin Vertical PCB Mount - CR 2032 MFR FV
Regular price
£4.29 GBP
Regular price
Sale price
£4.29 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The CR 2032 MFR FV is a 2032 3V/225mAh Non-rechargeable Battery features a lithium manganese dioxide technology and PCB pins terminals. Two-pin standard tabbed coin cells for vertical mounting on PCBs. Excellent solder ability to solder-plated areas. Suitable for wave-soldering. Solder contacts stainless steel AISI 301, thickness 0.15mm. Tin-plated solder area lead-free (>99.9% Sn) plated throughout, thickness minimum 2.5μm. Solder ability according to MIL-STD 883C, method 2003.3.
Features
- 0.4mA Standard discharge current
- <1%/year Self discharge at 23°C
- -30 to 60°C Operating temperature range
| Specifications | |
|---|---|
| Battery Voltage | 3V |
| Battery Size Code | 2032 |
| Battery Technology | Lithium Manganese Dioxide |
| Battery Capacity | 225mAh |
| Battery Terminals | PCB Pins |
| External Diameter | 20mm |
| External Height | 3.2mm |
| External Width | 21mm |
| External Depth | 3.2mm |
| Pack Quantity | 1 |
| Weight | 2.8g |
| Battery IEC Code | CR2032 |
| Battery NEDA Code | 5004LC |
| Important Product Warning: | Coin batteries must be kept out of reach of children, consult a doctor immediately if swallowed. |
| Country of Origin: | Indonesia |
