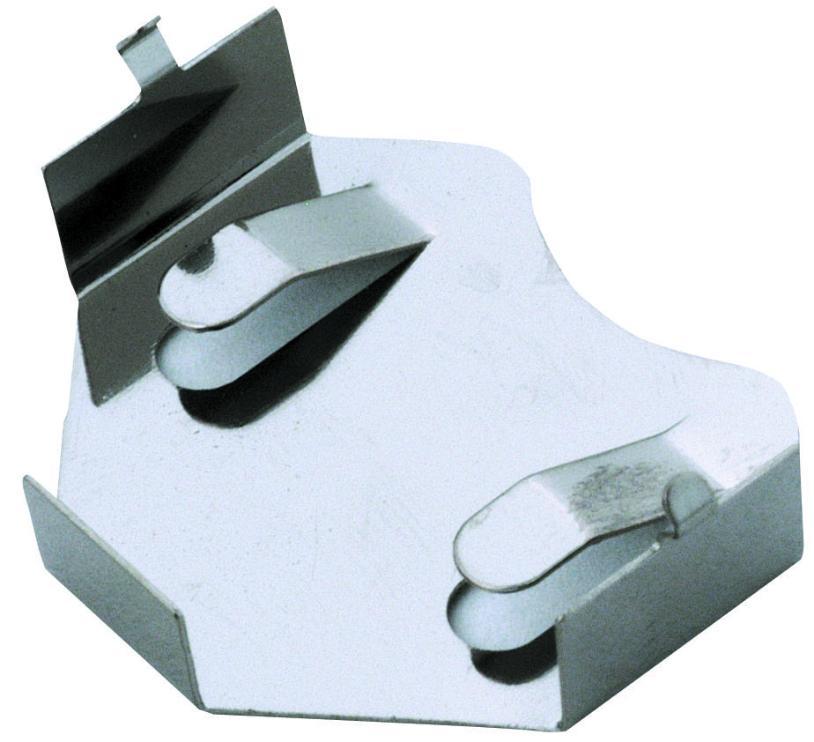

24mm Button Cell Retainer, PCB Mount - 3009
24mm Button Cell Retainer, PCB Mount - 3009
Regular price
£2.09 GBP
Regular price
Sale price
£2.09 GBP
Unit price
/
per
The 3009 is a Coin-cell Retainer with tin-nickel-plate phosphor bronze contacts. This battery retainer engineered with reliable spring tension, the contacts assure low resistance while firmly securing the battery within the retainer. Solder tails located outside of retainer body which facilitates visual inspection of the solder joints. This retainer is compatible with most vacuum and mechanical pick and place assembly systems. This tin-nickel plated through hole mount retainer is ideal high temperature soldering applications. The 3000 series contact retain cell securely and withstand shock and vibration.
Features
- Compatible with all wave and reflow operations
- Flow-hole solder tail designed for increased joint strength
- Quick and easy battery installation and replacement
Specifications | |
---|---|
Battery Sizes Accepted | Coin Cell - 24mm |
Battery Terminals | PCB Pins |
Contact Material | Phosphor Bronze |
Country of Origin: | United States |
