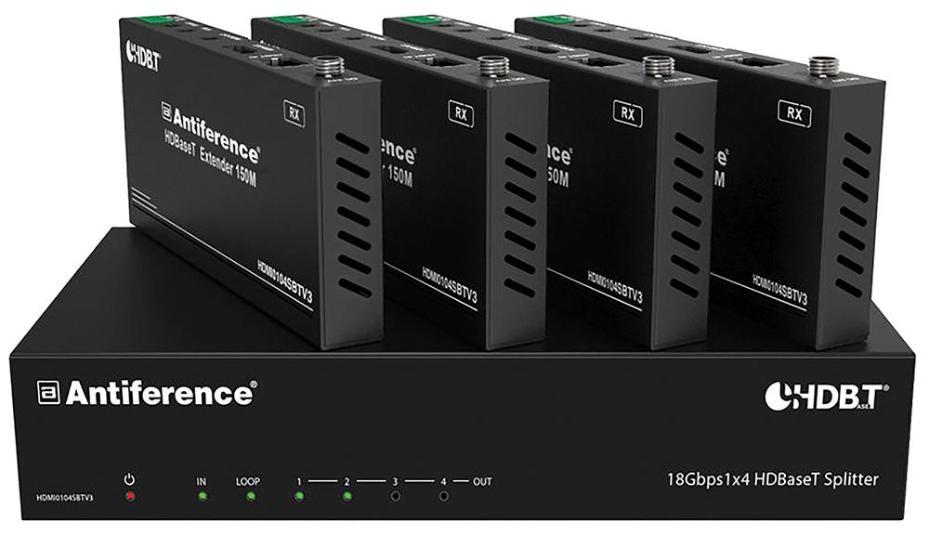

1x4 HDBaseT 4K 18Gbps Splitter Kit with Auto-Scaling - HDMI0104SBTV3
1x4 HDBaseT 4K 18Gbps Splitter Kit with Auto-Scaling - HDMI0104SBTV3
Regular price
£580.79 GBP
Regular price
Sale price
£580.79 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The HDMI0104SBTV3 is a 4K 18Gbps HDBaseT splitter over single Cat6 lead. Send a single 4K HDMI source video to up to 5x screens (1x via local HDMI loop output) up to 120m for 4K or 150m for 1080p signals. It features support for HDR, 4K2K at 60, HDCP2.2, 7.1CH HD audio and is fitted with an advanced EDID management system. It also features a PoH system with a single power supply on the sender unit delivering power to the entire system. In addition it has an auto-scaling function enabling a combination of 4K and 1080p screens to be connected to a 4K source. The system downscales automatically where required. It is supplied as a complete kit.
Features
- 18Gbps HDBaseT technology
- Split a single 4K HDMI source to 4x displays via CAT6 & 1x local display via HDMI
- Supports HDR, HDR10+, HLG & Dolby Vision
- 4K2K at 60 with HDCP2.2 signal transfer up to 120m
- 1080p resolutions supported for transfer up to 150m
- Auto-scaling function
- Advanced EDID management system
- PoH (power over HDbaseT)
- Supports 7.1 HD audio
- Digital & analog audio de-embedded output on receiver
- Colour depth up to 12-bit RGB
- Inputs: 1x HDMI-A
- Outputs: 1x HDMI-A, 4x RJ45, 1x RCA coax, 1x L/R phoenix audio
- Control: 1x RS-232, EDID dip switch, 1x IR IN/OUT
- Power supply: 100 to 240V AC, 2.7A (24V DC)
- Dimensions (HxWxD): 40x230x130mm (tx), 18x140x65mm (rx)
- Weight: 853g (tx), 246g (rx)
| Specifications | |
|---|---|
| Product Range | Antiference HDbaseT Splitter Kits |
| Plug Type | UK |
| Product Contents: | 1x splitter, 4x receiver, 5x IR TX/RX sensor, 6x Phoenix connector, 10x mounting ears, 1x PSU |
| Country of Origin: | China |
